Bitzer Germany 6HE-35Y

Compressor Model	6HE-35Y

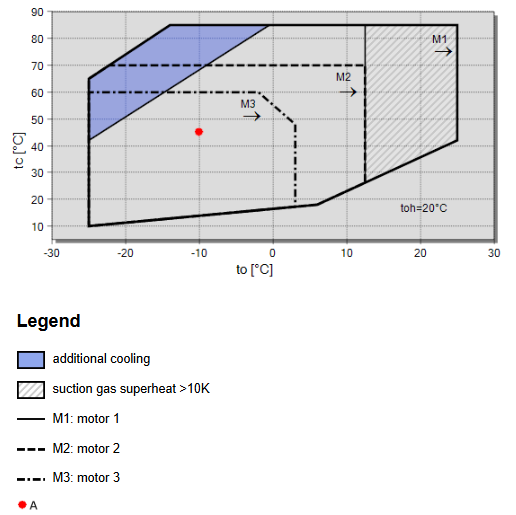

Mode	Refrigeration and air conditioning
Refrigerant	R134a
Reference temperature	Dew point temp.
Evaporating SST	-10,00 øC
Condensing SDT	45,0 øC
Liq. subc. (in condenser)	0 K
Suction gas temperature	20,00 øC
Operating mode	Auto
Power supply	400V-3-50Hz
Capacity control	100%
Useful superheat	100%
Capacity steps	100%
Cooling capacity	32,9 Kw
Evaporator capacity	32,9 Kw
Power input	12,96 Kw
Current (400V)	28,9 A
Voltage range	380-420V
Condenser capacity	45,8 Kw
COP/EER	2,54
Mass flow	770 kg/h
Operating mode	Standard
Discharge gas temp. w/o cooling	96,1 øC

Technical Data
Displacement (1450rpm 50Hz)	110,5 m?/h
Displacement (1750rpm 60Hz)	133,4 m?/h

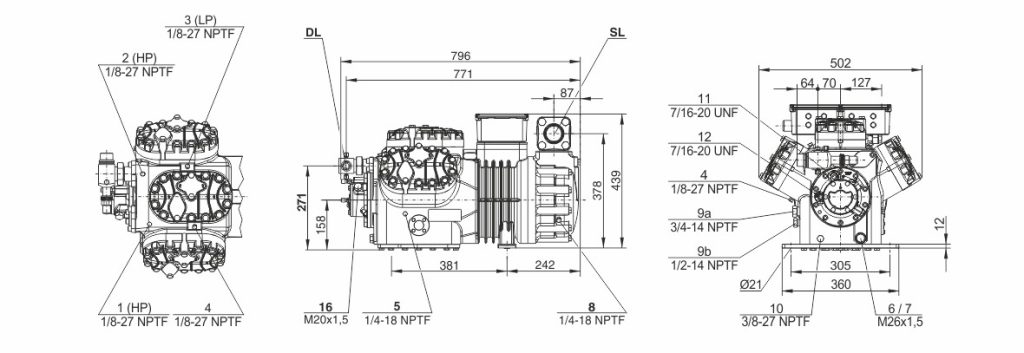

No. of cylinder x bore x stroke	6 x 70 mm x 55 mm
Weight	241 kg
Max. pressure (LP/HP)	19 / 32 bar
Connection suction line	54 mm - 2 1/8''
Connection discharge line	35 mm - 1 3/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) | R134a tc>70øC: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)
Oil type R1234yf	BSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option)
Oil type R1234ze	BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Oil type R454C/R455A	BSE32 (Standard)

Motor Data
Motor version	1
Motor voltage (more on request)	380-420V PW-3-50Hz
Max. operating current	64.4 A
Winding ratio	50/50
Starting current (Rotor locked)	165.0 A Y / 275.0 A YY
Max. power input	36,0 kW

Extent Of Delivery (Standard)
Motor protection	SE-B3 (Option), SE-B2 (Option), CM-RC-02 (Standard)
Enclosure class	IP54 (Standard), IP66 (Option)
Vibration dampers	Standard
Oil charge	4,75 dm?
Discharge shut-off valve	Standard
Suction shut-off valve	Standard

Available Options
Discharge gas temperature sensor	Option
Start unloading	Option
Capacity control	100-66-33% (Option)
Capacity Control - infinite	100-10% (Option)
Additional fan	Option
Oil service valve	Option
Oil heater	140 W (Option)
Oil pressure monitoring	MP54 (Option), Delta-PII

Sound Measurement
Sound power level (+5øC / 50øC)	81,4 dB(A) @50Hz
Sound power level (-10øC / 45øC)	81,8 dB(A) @50Hz
Sound power level (-35øC / 40øC)	89,5 dB(A) @50Hz
Sound pressure level @ 1m (+5øC / 50øC)	73,4 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC)	73,8 dB(A) @50Hz
Sound pressure level @ 1m (-35øC / 40øC)	81,5 dB(A) @50Hz
Sound power level (+5øC / 50øC) R134a	79,4 dB(A) @50Hz
Sound power level (-10øC / 45øC) R134a	79,8 dB(A) @50Hz
Sound pressure level @ 1m (+5øC / 50øC) R134a	71,4 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC) R134a	71,8 dB(A) @50Hz

Compressor Model	6HE-35Y
Mode	Refrigeration and air conditioning

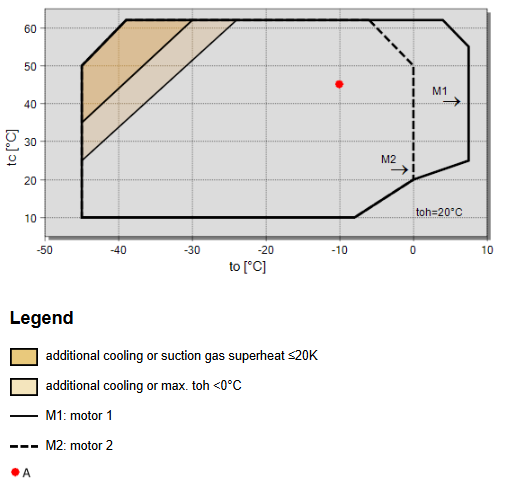

Refrigerant	R404A
Reference temperature	Dew point temp.
Evaporating SST	-10,00 °C
Condensing SDT	45,0 °C
Liq. subc. (in condenser)	0 K
Suction gas temperature	20,00 °C
Operating mode	Auto
Power supply	400V-3-50Hz
Capacity control	100%
Useful superheat	100%
Capacity steps	100%
Cooling capacity	56 Kw
Evaporator capacity	56 Kw
Power input	24,2 Kw
Current (400V)	43,5 A
Voltage range	380-420V
Condenser capacity	80,2 Kw
COP/EER	2,32
Mass flow	1679 kg/h
Operating mode	Standard
Discharge gas temp. w/o cooling	90,7 °C

Technical Data
Displacement (1450rpm 50Hz)	110,5 m?/h
Displacement (1750rpm 60Hz)	133,4 m?/h
No. of cylinder x bore x stroke	6 x 70 mm x 55 mm
Weight	241 kg
Max. pressure (LP/HP)	19 / 32 bar
Connection suction line	54 mm - 2 1/8''
Connection discharge line	35 mm - 1 3/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) | R134a tc>70øC: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)
Oil type R1234yf	BSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option)
Oil type R1234ze	BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Oil type R454C/R455A	BSE32 (Standard)

Motor Data
Motor version	1
Motor voltage (more on request)	380-420V PW-3-50Hz
Max. operating current	64.4 A
Winding ratio	50/50
Starting current (Rotor locked)	165.0 A Y / 275.0 A YY
Max. power input	36,0 kW

Extent Of Delivery (Standard)
Motor protection	SE-B3 (Option), SE-B2 (Option), CM-RC-02 (Standard)
Enclosure class	IP54 (Standard), IP66 (Option)
Vibration dampers	Standard
Oil charge	4,75 dm?
Discharge shut-off valve	Standard
Suction shut-off valve	Standard

Available Options
Discharge gas temperature sensor	Option
Start unloading	Option
Capacity control	100-66-33% (Option)
Capacity Control - infinite	100-10% (Option)
Additional fan	Option
Oil service valve	Option
Oil heater	140 W (Option)
Oil pressure monitoring	MP54 (Option), Delta-PII

Sound Measurement
Sound power level (+5øC / 50øC)	81,4 dB(A) @50Hz
Sound power level (-10øC / 45øC)	81,8 dB(A) @50Hz
Sound power level (-35øC / 40øC)	89,5 dB(A) @50Hz
Sound pressure level @ 1m (+5øC / 50øC)	73,4 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC)	73,8 dB(A) @50Hz
Sound pressure level @ 1m (-35øC / 40øC)	81,5 dB(A) @50Hz
Sound power level (+5øC / 50øC) R134a	79,4 dB(A) @50Hz
Sound power level (-10øC / 45øC) R134a	79,8 dB(A) @50Hz
Sound pressure level @ 1m (+5øC / 50øC) R134a	71,4 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC) R134a	71,8 dB(A) @50Hz
