Bitzer Germany 6FE-50Y

Compressor Model	6FE-50Y
Mode	Refrigeration and air conditioning

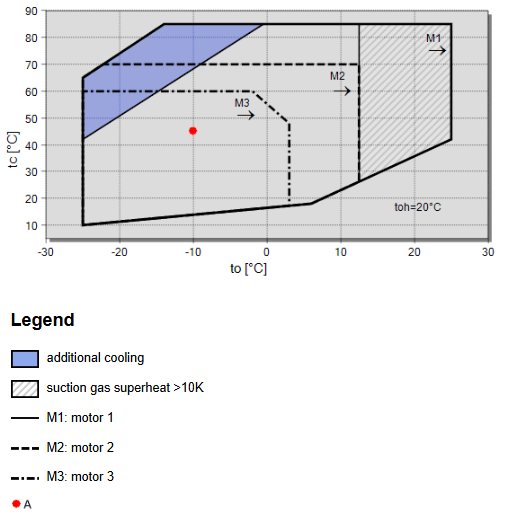

Refrigerant	R134a
Reference temperature	Dew point temp.
Evaporating SST	-10,00 °C
Condensing SDT	45,0 °C
Liq. subc. (in condenser)	0 K
Suction gas temperature	20,00 °C
Operating mode	Auto
Power supply	400V-3-50Hz
Capacity control	100%
Useful superheat	100%
Capacity steps	100%
Cooling capacity	45,7 Kw
Evaporator capacity	45,7 Kw
Power input	18,74 Kw
Current (400V)	51,5 A
Voltage range	380-400V
Condenser capacity	64,4 Kw
COP/EER	2,44
Mass flow	1070 kg/h
Operating mode	Standard
Discharge gas temp. w/o cooling	98,4 °C

Technical Data
Displacement (1450rpm 50Hz)	151,6 m?/h
Displacement (1750rpm 60Hz)	183,07 m?/h
No. of cylinder x bore x stroke	6 x 82 mm x 55 mm
Weight	246 kg
Max. pressure (LP/HP)	19 / 32 bar
Connection suction line	54 mm - 2 1/8''
Connection discharge line	42 mm - 1 5/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) | R134a tc>70øC: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)
Oil type R1234yf	BSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option)
Oil type R1234ze	BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Oil type R454C/R455A	BSE32 (Standard)

Motor Data
Motor version	1
Motor voltage (more on request)	380-400V PW-3-50Hz
Max. operating current	96.2 A
Winding ratio	50/50
Starting current (Rotor locked)	226.0 A Y / 404.0 A YY
Max. power input	51,0 kW

Extent Of Delivery (Standard)
Motor protection	SE-B3 (Option), SE-B2 (Option), CM-RC-02 (Standard)
Enclosure class	IP54 (Standard), IP66 (Option)
Vibration dampers	Standard
Oil charge	4,75 dm?
Discharge shut-off valve	Standard
Suction shut-off valve	Standard

Available Options
Discharge gas temperature sensor	Option
Start unloading	Option
Capacity control	100-66-33% (Option)
Capacity Control - infinite	100-10% (Option)
Additional fan	Option
Oil service valve	Option
Oil heater	140 W (Option)
Oil pressure monitoring	MP54 (Option), Delta-PII

Sound Measurement
Sound power level (+5øC / 50øC)	83,9 dB(A) @50Hz
Sound power level (-10øC / 45øC)	82,8 dB(A) @50Hz
Sound power level (-35øC / 40øC)	90,5 dB(A) @50Hz
Sound pressure level @ 1m (+5øC / 50øC)	75,9 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC)	74,8 dB(A) @50Hz
Sound pressure level @ 1m (-35øC / 40øC)	82,5 dB(A) @50Hz
Sound power level (+5øC / 50øC) R134a	81,9 dB(A) @50Hz
Sound power level (-10øC / 45øC) R134a	80,8 dB(A) @50Hz
Sound pressure level @ 1m (+5øC / 50øC) R134a	73,9 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC) R134a	72,8 dB(A) @50Hz

Compressor Model	6FE-50Y
Mode	Refrigeration and air conditioning

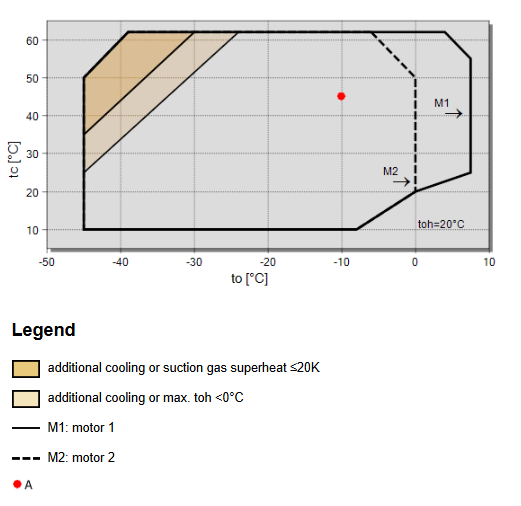

Refrigerant	R404A
Reference temperature	Dew point temp.
Evaporating SST	-10,00 °C
Condensing SDT	45,0 °C
Liq. subc. (in condenser)	0 K
Suction gas temperature	20,00 °C
Operating mode	Auto
Power supply	400V-3-50Hz
Capacity control	100%
Useful superheat	100%
Capacity steps	100%
Cooling capacity	78 Kw
Evaporator capacity	78 Kw
Power input	34,6 Kw
Current (400V)	72,3 A
Voltage range	380-400V
Condenser capacity	112,6 Kw
COP/EER	2,25
Mass flow	2337 kg/h
Operating mode	Standard
Discharge gas temp. w/o cooling	92,1°C

Technical Data
Displacement (1450rpm 50Hz)	151,6 m?/h
Displacement (1750rpm 60Hz)	183,07 m?/h
No. of cylinder x bore x stroke	6 x 82 mm x 55 mm
Weight	246 kg
Max. pressure (LP/HP)	19 / 32 bar
Connection suction line	54 mm - 2 1/8''
Connection discharge line	42 mm - 1 5/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) | R134a tc>70øC: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)
Oil type R1234yf	BSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option)
Oil type R1234ze	BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Oil type R454C/R455A	BSE32 (Standard)

Motor Data
Motor version	1
Motor voltage (more on request)	380-400V PW-3-50Hz
Max. operating current	96.2 A
Winding ratio	50/50
Starting current (Rotor locked)	226.0 A Y / 404.0 A YY
Max. power input	51,0 kW

Extent Of Delivery (Standard)
Motor protection	SE-B3 (Option), SE-B2 (Option), CM-RC-02 (Standard)
Enclosure class	IP54 (Standard), IP66 (Option)
Vibration dampers	Standard
Oil charge	4,75 dm?
Discharge shut-off valve	Standard
Suction shut-off valve	Standard

Available Options
Discharge gas temperature sensor	Option
Start unloading	Option
Capacity control	100-66-33% (Option)
Capacity Control - infinite	100-10% (Option)
Additional fan	Option
Oil service valve	Option
Oil heater	140 W (Option)
Oil pressure monitoring	MP54 (Option), Delta-PII

Sound Measurement
Sound power level (+5øC / 50øC)	83,9 dB(A) @50Hz
Sound power level (-10øC / 45øC)	82,8 dB(A) @50Hz
Sound power level (-35øC / 40øC)	90,5 dB(A) @50Hz
Sound pressure level @ 1m (+5øC / 50øC)	75,9 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC)	74,8 dB(A) @50Hz
Sound pressure level @ 1m (-35øC / 40øC)	82,5 dB(A) @50Hz
Sound power level (+5øC / 50øC) R134a	81,9 dB(A) @50Hz
Sound power level (-10øC / 45øC) R134a	80,8 dB(A) @50Hz
Sound pressure level @ 1m (+5øC / 50øC) R134a	73,9 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC) R134a	72,8 dB(A) @50Hz
