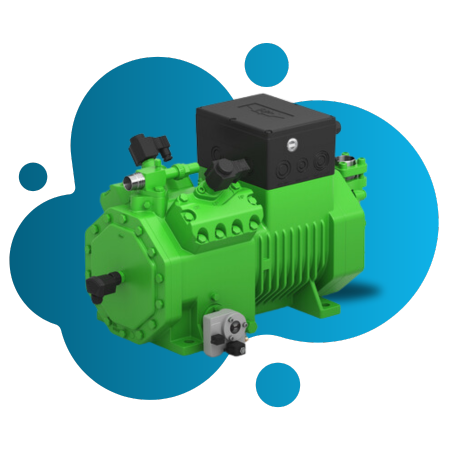

Bitzer Germany 4TES-9Y

Compressor Model	4TES-9Y
Mode	Refrigeration and air conditioning

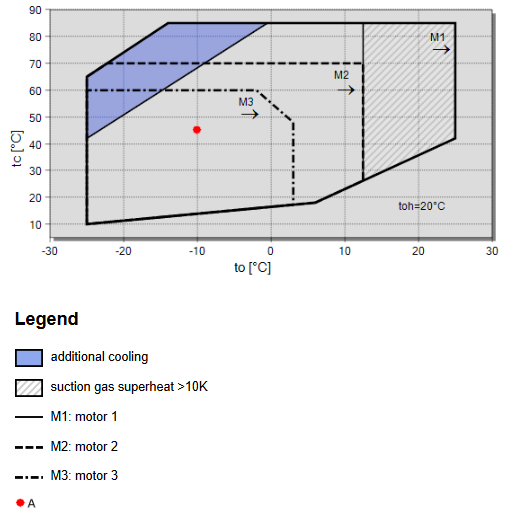

Refrigerant	R134a
Reference temperature	Dew point temp.
Evaporating SST	-10,00 øC
Condensing SDT	45,0 øC
Liq. subc. (in condenser)	0 K
Suction gas temperature	20,00 øC
Operating mode	Auto
Power supply	400V-3-50Hz
Capacity control	100%
Useful superheat	100%
Capacity steps	100%
Cooling capacity	12,33 Kw
Evaporator capacity	12,33 Kw
Power input	4,86 Kw
Current (400V)	9,23 A
Voltage range	380-420V
Condenser capacity	17,18 Kw
COP/EER	2,54
Mass flow	289 kg/h
Operating mode	Standard
Discharge gas temp. w/o cooling	96,1øC

Technical Data
Displacement (1450rpm 50Hz)	41,33 m3/h
Displacement (1750rpm 60Hz)	49,88 m3/h

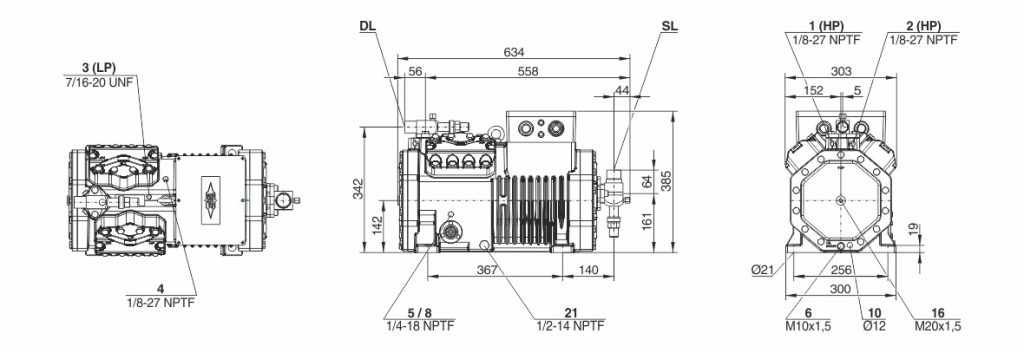

No. of cylinder x bore x stroke	4 x 60 mm x 42 mm
Weight	143 kg
Max. pressure (LP/HP)	19 / 32 bar
Connection suction line	35 mm - 1 3/8''
Connection discharge line	28 mm - 1 1/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) | R134a tc>70øC: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)
Oil type R1234yf	BSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option)
Oil type R1234ze	BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Oil type R454C/R455A	BSE32 (Standard)
Oil type R515B	BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Motor data

Motor Data
Motor version	2
Motor voltage (more on request)	380-420V PW-3-50Hz
Max. operating current	19.9 A
Winding ratio	50/50
Starting current (Rotor locked)	49.0 A Y / 81.0 A YY
Max. power input	13,0 kW

Extent Of Delivery (Standard)
Motor protection	SE-B3 (Option), SE-B2 (Option), CM-RC-02 (Standard)
Enclosure class	IP66
Vibration dampers	Standard
Oil charge	2,60 dm?
Discharge shut-off valve	Standard
Suction shut-off valve	Standard

Available Options
Discharge gas temperature sensor	Option
Start unloading	Option
Capacity control	100-50% (Option)
Capacity Control - infinite	100-10% (Option)
Additional fan	Option
Refrigerant Injection (RI)	Option
Oil service valve	Option
Oil heater	0..140 W PTC (Option)
Oil level monitoring	OLC-K1 (Option)

Sound Measurement
Sound power level (-10øC / 45øC)	74,3 dB(A) @50Hz
Sound power level (-35øC / 40øC)	78,9 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC)	66,3 dB(A) @50Hz
Sound pressure level @ 1m (-35øC / 40øC)	70,9 dB(A) @50Hz
Sound power level (-10øC / 45øC) R134a	72,3 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC) R134a	64,3 dB(A) @50Hz

Compressor Model	4TES-9Y
Mode	Refrigeration and air conditioning

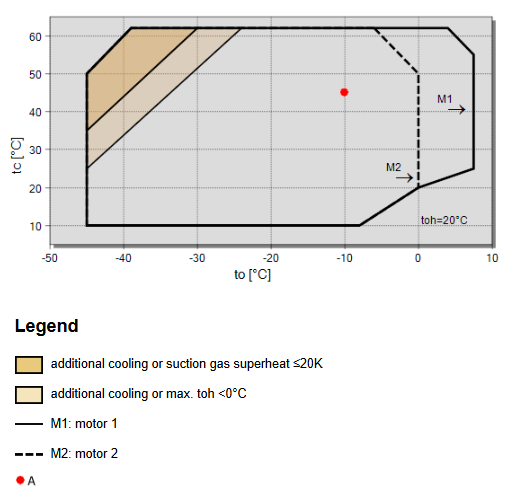

Refrigerant	R404A
Reference temperature	Dew point temp.
Evaporating SST	-10,00 °C
Condensing SDT	45,0 °C
Liq. subc. (in condenser)	0 K
Suction gas temperature	20,00 °C
Operating mode	Auto
Power supply	400V-3-50Hz
Capacity control	100%
Useful superheat	100%
Capacity steps	100%
Cooling capacity	21 Kw
Evaporator capacity	21 Kw
Power input	9,28 Kw
Current (400V)	15,78 A
Voltage range	380-420V
Condenser capacity	30,3 Kw
COP/EER	2,26
Mass flow	629 kg/h
Operating mode	Standard
Discharge gas temp. w/o cooling	91,8°C

Technical Data
Displacement (1450rpm 50Hz)	41,33 m3/h
Displacement (1750rpm 60Hz)	49,88 m3/h
No. of cylinder x bore x stroke	4 x 60 mm x 42 mm
Weight	143 kg
Max. pressure (LP/HP)	19 / 32 bar
Connection suction line	35 mm - 1 3/8''
Connection discharge line	28 mm - 1 1/8''
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) | R134a tc>70øC: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)
Oil type R1234yf	BSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option)
Oil type R1234ze	BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Oil type R454C/R455A	BSE32 (Standard)
Oil type R515B	BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)

Motor Data
Motor version	2
Motor voltage (more on request)	380-420V PW-3-50Hz
Max. operating current	19.9 A
Winding ratio	50/50
Starting current (Rotor locked)	49.0 A Y / 81.0 A YY
Max. power input	13,0 kW

Extent Of Delivery (Standard)
Motor protection	SE-B3 (Option), SE-B2 (Option), CM-RC-02 (Standard)
Enclosure class	IP66
Vibration dampers	Standard
Oil charge	2,60 dm?
Discharge shut-off valve	Standard
Suction shut-off valve	Standard

Available Options
Discharge gas temperature sensor	Option
Start unloading	Option
Capacity control	100-50% (Option)
Capacity Control - infinite	100-10% (Option)
Additional fan	Option
Refrigerant Injection (RI)	Option
Oil service valve	Option
Oil heater	0..140 W PTC (Option)
Oil level monitoring	OLC-K1 (Option)

Sound Measurement
Sound power level (-10øC / 45øC)	74,3 dB(A) @50Hz
Sound power level (-35øC / 40øC)	78,9 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC)	66,3 dB(A) @50Hz
Sound pressure level @ 1m (-35øC / 40øC)	70,9 dB(A) @50Hz
Sound power level (-10øC / 45øC) R134a	72,3 dB(A) @50Hz
Sound pressure level @ 1m (-10øC / 45øC) R134a	64,3 dB(A) @50Hz
