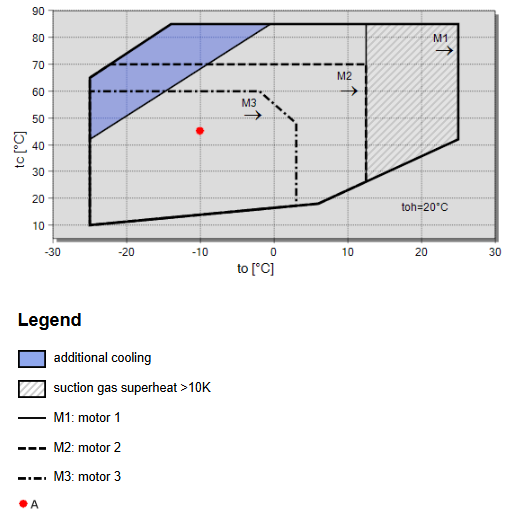

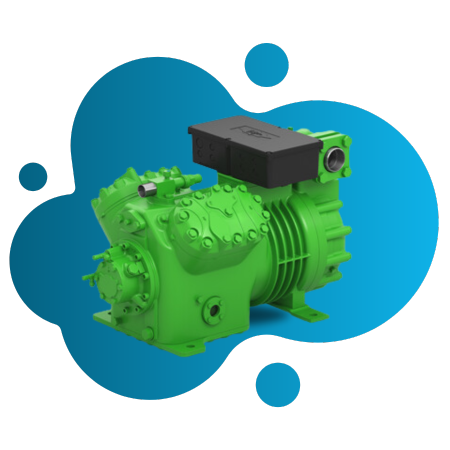

Refrigerant R134a
| Compressor Model | 4GE-30Y |
|---|---|
| Mode | Refrigeration and air conditioning |
| Refrigerant | R134a |
| Reference temperature | Dew point temp. |
| Evaporating SST | -10,00 °C |
| Condensing SDT | 45,0 °C |
| Liq. subc. (in condenser) | 0 K |
| Suction gas temperature | 20,00 °C |
| Operating mode | Auto |
| Power supply | 400V-3-50Hz |
| Capacity control | 100% |
| Useful superheat | 100% |
| Capacity steps | 100% |
| Cooling capacity | 26,3 Kw |
| Evaporator capacity | 26,3 Kw |
| Power input | 10,33 Kw |
| Current (400V) | 23,2 A |
| Voltage range | 380-420V |
| Condenser capacity | 36,7 Kw |
| COP/EER | 2,55 |
| Mass flow | 616 kg/h |
| Operating mode | Standard |
| Discharge gas temp. w/o cooling | 95,9°C |

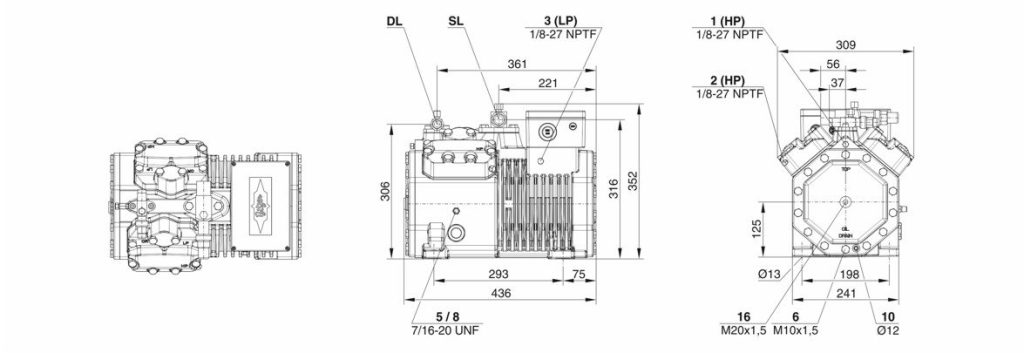

| Technical Data | |
|---|---|
| Displacement (1450rpm 50Hz) | 84,5 m?/h |
| Displacement (1750rpm 60Hz) | 101,98 m?/h |
| No. of cylinder x bore x stroke | 4 x 75 mm x 55 mm |
| Weight | 209 kg |
| Max. pressure (LP/HP) | 19 / 32 bar |
| Connection suction line | 54 mm - 2 1/8'' |
| Connection discharge line | 28 mm - 1 1/8'' |
| Oil type R134a/R407C/R404A/R507A/R407A/R407F | BSE32(Standard) | R134a tc>70øC: BSE55 (Option) |
| Oil type R22 (R12/R502) | B5.2(Option) |
| Oil type R1234yf | BSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option) |
| Oil type R1234ze | BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option) |
| Oil type R454C/R455A | BSE32 (Standard) |
| Motor Data | |
|---|---|
| Motor version | 1 |
| Motor voltage (more on request) | 380-420V PW-3-50Hz |
| Max. operating current | 51.2 A |
| Winding ratio | 50/50 |
| Starting current (Rotor locked) | 141.0 A Y / 233.0 A YY |
| Max. power input | 28,0 kW |
| Extent Of Delivery (Standard) | |
|---|---|
| Motor protection | SE-B3 (Option), SE-B2 (Option), CM-RC-02 (Standard) |
| Enclosure class | IP54 (Standard), IP66 (Option) |
| Vibration dampers | Standard |
| Oil charge | 4,50 dm? |
| Discharge shut-off valve | Standard |
| Suction shut-off valve | Standard |
| Available Options | |
|---|---|
| Discharge gas temperature sensor | Option |
| Start unloading | Option |
| Capacity control | 100-50% (Option) |
| Capacity Control - infinite | 100-10% (Option) |
| Additional fan | Option |
| Oil service valve | Option |
| Oil heater | 140 W (Option) |
| Oil pressure monitoring | MP54 (Option), Delta-PII |
| Sound Measurement | |
|---|---|
| Sound power level (+5øC / 50øC) | 81,5 dB(A) @50Hz |
| Sound power level (-10øC / 45øC) | 81,0 dB(A) @50Hz |
| Sound power level (-35øC / 40øC) | 86,5 dB(A) @50Hz |
| Sound pressure level @ 1m (+5øC / 50øC) | 73,5 dB(A) @50Hz |
| Sound pressure level @ 1m (-10øC / 45øC) | 73 dB(A) @50Hz |
| Sound pressure level @ 1m (-35øC / 40øC) | 78,5 dB(A) @50Hz |
| Sound power level (+5øC / 50øC) R134a | 79,5 dB(A) @50Hz |
| Sound power level (-10øC / 45øC) R134a | 79 dB(A) @50Hz |
| Sound pressure level @ 1m (+5øC / 50øC) R134a | 71 dB(A) @50Hz |
| Sound pressure level @ 1m (-10øC / 45øC) R134a | 71 dB(A) @50Hz |

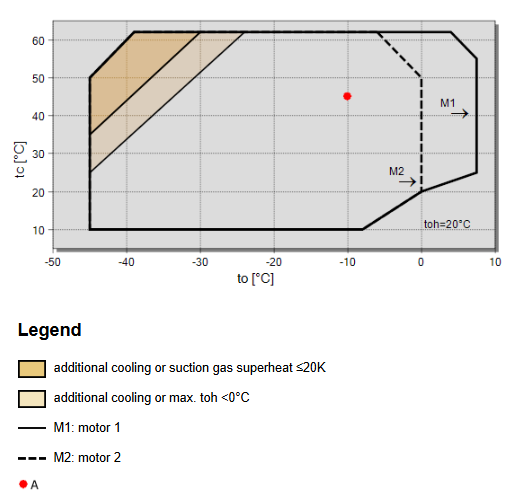

Refrigerant R404a
| Compressor Model | 4GE-30Y |
|---|---|
| Mode | Refrigeration and air conditioning |
| Refrigerant | R404A |
| Reference temperature | Dew point temp. |
| Evaporating SST | -10,00 øC |
| Condensing SDT | 45,0 øC |
| Liq. subc. (in condenser) | 0 K |
| Suction gas temperature | 20,00 øC |
| Operating mode | Auto |
| Power supply | 400V-3-50Hz |
| Capacity control | 100% |
| Useful superheat | 100% |
| Capacity steps | 100% |
| Cooling capacity | 43,8 Kw |
| Evaporator capacity | 43,8 Kw |
| Power input | 18,71 Kw |
| Current (400V) | 34 |
| Voltage range | 380-420V |
| Condenser capacity | 62,5 Kw |
| COP/EER | 2,34 |
| Mass flow | 1312 kg/h |
| Operating mode | Standard |
| Discharge gas temp. w/o cooling | 90,3øC |
| Technical Data | |
|---|---|
| Displacement (1450rpm 50Hz) | 84,5 m?/h |
| Displacement (1750rpm 60Hz) | 101,98 m?/h |
| No. of cylinder x bore x stroke | 4 x 75 mm x 55 mm |
| Weight | 209 kg |
| Max. pressure (LP/HP) | 19 / 32 bar |
| Connection suction line | 54 mm - 2 1/8'' |
| Connection discharge line | 28 mm - 1 1/8'' |
| Oil type R134a/R407C/R404A/R507A/R407A/R407F | BSE32(Standard) | R134a tc>70øC: BSE55 (Option) |
| Oil type R22 (R12/R502) | B5.2(Option) |
| Oil type R1234yf | BSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option) |
| Oil type R1234ze | BSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option) |
| Oil type R454C/R455A | BSE32 (Standard) |
| Motor Data | |
|---|---|
| Motor version | 1 |
| Motor voltage (more on request) | 380-420V PW-3-50Hz |
| Max. operating current | 51.2 A |
| Winding ratio | 50/50 |
| Starting current (Rotor locked) | 141.0 A Y / 233.0 A YY |
| Max. power input | 28,0 kW |
| Extent Of Delivery (Standard) | |
|---|---|
| Motor protection | SE-B3 (Option), SE-B2 (Option), CM-RC-02 (Standard) |
| Enclosure class | IP54 (Standard), IP66 (Option) |
| Vibration dampers | Standard |
| Oil charge | 4,50 dm? |
| Discharge shut-off valve | Standard |
| Suction shut-off valve | Standard |
| Available Options | |
|---|---|
| Discharge gas temperature sensor | Option |
| Start unloading | Option |
| Capacity control | 100-50% (Option) |
| Capacity Control - infinite | 100-10% (Option) |
| Additional fan | Option |
| Oil service valve | Option |
| Oil heater | 140 W (Option) |
| Oil pressure monitoring | MP54 (Option), Delta-PII |
| Sound Measurement | |
|---|---|
| Sound power level (+5øC / 50øC) | 81,5 dB(A) @50Hz |
| Sound power level (-10øC / 45øC) | 81,0 dB(A) @50Hz |
| Sound power level (-35øC / 40øC) | 86,5 dB(A) @50Hz |
| Sound pressure level @ 1m (+5øC / 50øC) | 73,5 dB(A) @50Hz |
| Sound pressure level @ 1m (-10øC / 45øC) | 73 dB(A) @50Hz |
| Sound pressure level @ 1m (-35øC / 40øC) | 78,5 dB(A) @50Hz |
| Sound power level (+5øC / 50øC) R134a | 79,5 dB(A) @50Hz |
| Sound power level (-10øC / 45øC) R134a | 79 dB(A) @50Hz |
| Sound pressure level @ 1m (+5øC / 50øC) R134a | 71 dB(A) @50Hz |
| Sound pressure level @ 1m (-10øC / 45øC) R134a | 71 dB(A) @50Hz |
