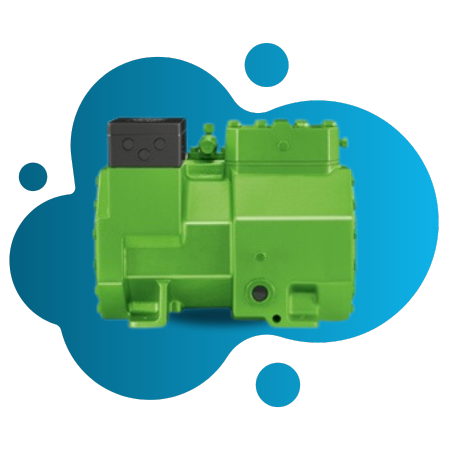

Bitzer Germany 2GES-2Y

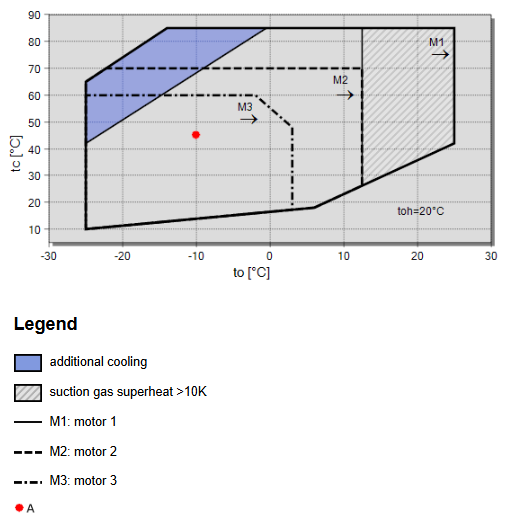

Refrigerant R134a

Compressor Model2GES-2Y
ModeRefrigeration and air conditioning
RefrigerantR134a
Reference temperatureDew point temp.
Evaporating SST-10,00 øC
Condensing SDT45,0 øC
Liq. subc. (in condenser)0 K
Suction gas temperature20,00 øC
Operating modeAuto
Power supply400V-3-50Hz
Capacity control100%
Useful superheat100%
Capacity steps100%
Cooling capacity2,16 Kw
Evaporator capacity2,16 Kw
Power input1,02 Kw
Current (400V)2,76 A
Voltage range380-420V
Condenser capacity3,19 Kw
COP/EER2,12
Mass flow50,7 kg/h
Operating modeStandard
Discharge gas temp. w/o cooling107,1øC
Technical Data
Displacement (1450rpm 50Hz)7,58 m?/h
Displacement (1750rpm 60Hz)9,15 m?/h
No. of cylinder x bore x stroke2 x 41 mm x 33 mm
Weight49 kg
Max. pressure (LP/HP)19 / 32bar
Connection suction line16 mm - 5/8''
Connection discharge line12 mm - 1/2''
Oil type R134a/R407C/R404A/R507A/R407A/R407FBSE32(Standard) | R134a tc>70øC: BSE55 (Option)
Oil type R22 (R12/R502)B5.2 (Option)
Oil type R1234yfBSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option)
Oil type R1234zeBSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Oil type R454C/R455ABSE32 (Standard)
Motor Data
Motor version1
Motor voltage (more on request)380-420V Y-3-50Hz
Max. operating current5.0 A
Starting current (Rotor locked)22.5 A
Max. power input2,7 kW
Extent Of Delivery (Standard)
Motor protectionSE-B3 (Standard), SE-B2 (Option), CM-RC-02 (Option)
Enclosure classIP66
Vibration dampersStandard
Oil charge1,00 dm?
Discharge shut-off valveStandard
Suction shut-off valveStandard
Available Options
Additional fanOption
Oil heater0..60 W PTC (Option)
Sound Measurement
Sound power level (+5øC / 50øC)64,0 dB(A) @ 50Hz
Sound power level (-10øC / 45øC)63,0 dB(A) @ 50Hz
Sound power level (-35øC / 40øC)63,5 dB(A) @ 50Hz
Sound pressure level @ 1m (+5øC / 50øC)56,0 dB(A) @ 50Hz
Sound pressure level @ 1m (-10øC / 45øC)55,0 dB(A) @ 50Hz
Sound pressure level @ 1m (-35øC / 40øC)55,5 dB(A) @ 50Hz

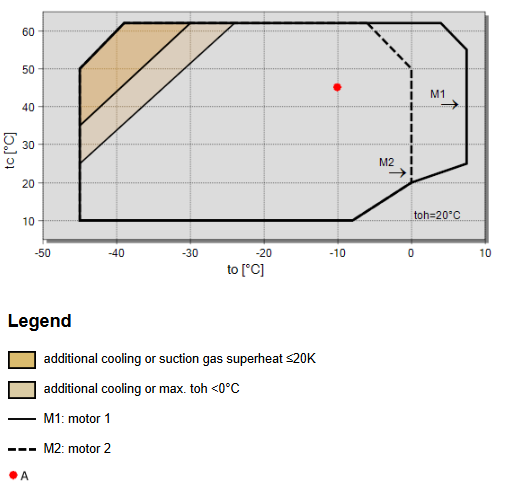

Refrigerant R404a

Compressor Model2GES-2Y
ModeRefrigeration and air conditioning
RefrigerantR404A
Reference temperatureDew point temp.
Evaporating SST-10,00 °C
Condensing SDT45,0 °C
Liq. subc. (in condenser)0 K
Suction gas temperature20,00 °C
Operating modeAuto
Power supply400V-3-50Hz
Capacity control100%
Useful superheat100%
Capacity steps100%
Cooling capacity3,55 Kw
Evaporator capacity3,55 Kw
Power input1,81 Kw
Current (400V)3,57 A
Voltage range380-420V
Condenser capacity5,36 Kw
COP/EER1,97
Mass flow106,5 kg/h
Operating modeStandard
Discharge gas temp. w/o cooling98,8 °C
Technical Data
Displacement (1450rpm 50Hz)7,58 m?/h
Displacement (1750rpm 60Hz)9,15 m?/h
No. of cylinder x bore x stroke2 x 41 mm x 33 mm
Weight49 kg
Max. pressure (LP/HP)19 / 32bar
Connection suction line16 mm - 5/8''
Connection discharge line12 mm - 1/2''
Oil type R134a/R407C/R404A/R507A/R407A/R407FBSE32(Standard) | R134a tc>70øC: BSE55 (Option)
Oil type R22 (R12/R502)B5.2 (Option)
Oil type R1234yfBSE32 (Standard) | R1234yf tc>70øC : BSE55 (Option)
Oil type R1234zeBSE55 (Standard) | to>15øC: BSE85K (Option) | tc>70øC: BSE85K (Option)
Oil type R454C/R455ABSE32 (Standard)
Motor Data
Motor version1
Motor voltage (more on request)380-420V Y-3-50Hz
Max. operating current5.0 A
Starting current (Rotor locked)22.5 A
Max. power input2,7 kW
Extent Of Delivery (Standard)
Motor protectionSE-B3 (Standard), SE-B2 (Option), CM-RC-02 (Option)
Enclosure classIP66
Vibration dampersStandard
Oil charge1,00 dm?
Discharge shut-off valveStandard
Suction shut-off valveStandard
Available Options
Additional fanOption
Oil heater0..60 W PTC (Option)
Sound Measurement
Sound power level (+5øC / 50øC)64,0 dB(A) @ 50Hz
Sound power level (-10øC / 45øC)63,0 dB(A) @ 50Hz
Sound power level (-35øC / 40øC)63,5 dB(A) @ 50Hz
Sound pressure level @ 1m (+5øC / 50øC)56,0 dB(A) @ 50Hz
Sound pressure level @ 1m (-10øC / 45øC)55,0 dB(A) @ 50Hz
Sound pressure level @ 1m (-35øC / 40øC)55,5 dB(A) @ 50Hz
